Description:
FOX 35 ELITE II thermal sight is a great choice for customers who require good image quality, proven technology and an excellent price. Night Pearl FOX 35 ELITE II uses VOx sensor technology and a 35mm objective lens. An important advantage of the thermal sight is the compact and lightweight body while maintaining a solid recoil-resistant construction. These properties do not appear very often with thermal imaging sights of the same class. Optical magnification is sufficient for use at greater distances.
OLED DISPLAY
New oled display with resolution 1024x768 px with better brightness, sharpness and image quality
LIGHTWEIGHT AND COMPACT
Small, lightweight and compact body of the device with shock resistance up to 6000 J.

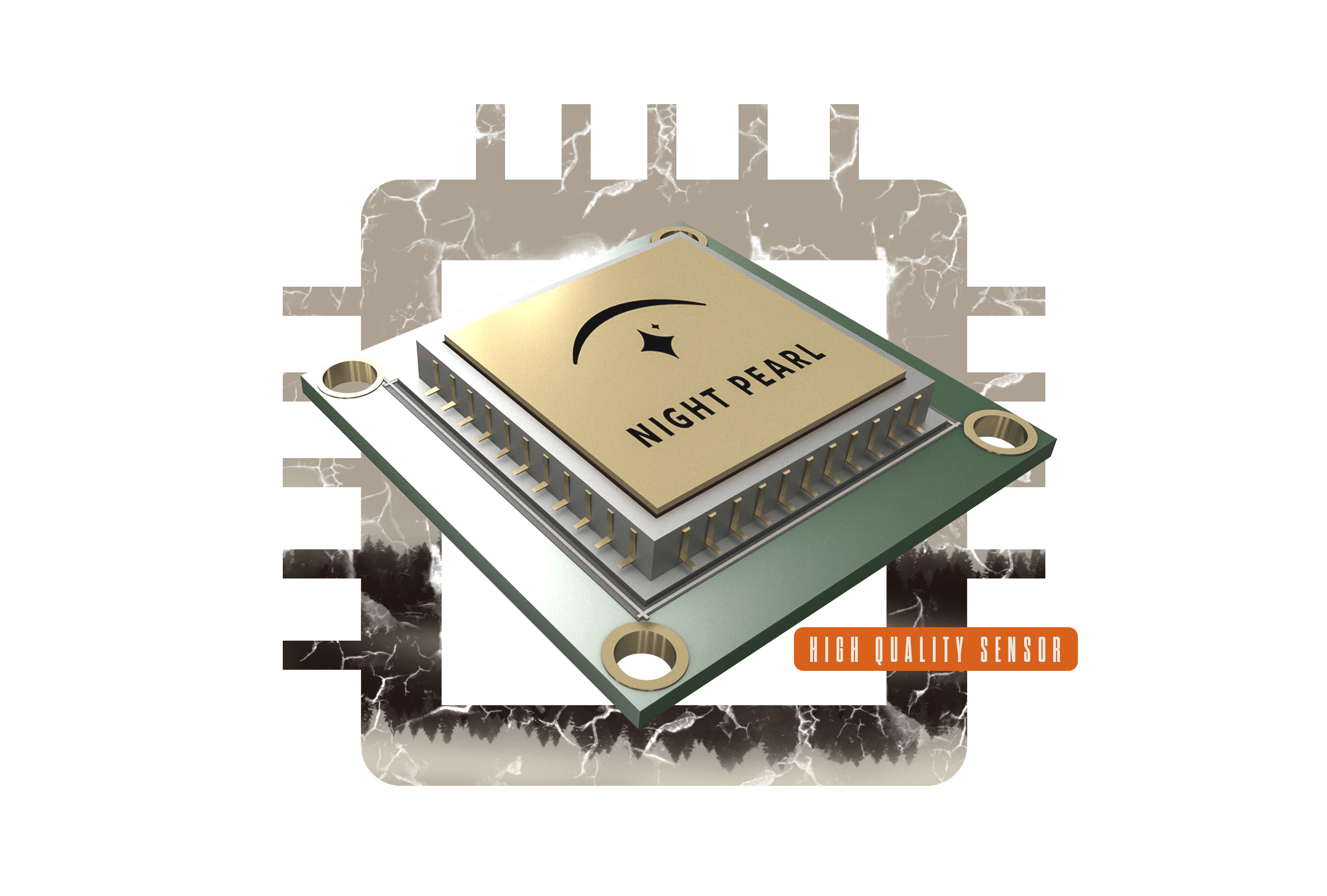

SENSOR INFIRAY
High quality sensor from manufacturer InfiRay.
FOX 35 ELITE II
other features
HIGH SHOCK/RECOIL RESISTANCE
PIP - PICTURE IN PICTURE
INTEGRATED RATIO RANGEFINDER
Specification
FOX 35 ELITE II Thermal Sight
FOX 19 HUNT | FOX 35 ELITE II | FOX 50 MAX III | |
Detection range (graph) | 986 m | 1 818 m | 2 597 m |
Magnification | 2,3x (optical), 2x (digital) | 3x (optical), 2x a 4x (digital), PIP | 3x (optical), 2x, 4x (digital) |
Sensor resolution, core type | 256x192 px, | 384x288 px | 640x512 px |
Core type | Ceramic VOx, 12μm | Ceramic VOx, 12μm | Ceramic VOx, 12 µm |
Objective Ø | 19 mm | 35 mm | 50 mm |
Refresh rate | 25 Hz (PAL), 30 Hz (NTSC) | 50 Hz (PAL), 60 Hz (NTSC) | 50 Hz (PAL) / 60 Hz (NTSC) |
Display type | 1280x960 px, LCOS | 1024X768 px, OLED | 1024X768 px, OLED |
Field of view | 9,2° x 8,0° | 7,5° x 5,7° | 8.8° × 6.6° |
Field of view (m/100m) | 16,1 x 14 | 13,1 x 10 | 15,4 x 11,5 |
Color palette | 4 types | 4 types | |
Laser Range Finder | No | Yes | — |
Storage | 16 GB | 32 GB | 32 GB |
Wi-Fi | No | Yes | Yes |
PIP | — | Yes | Yes (to 8x magnification) |
Take photos / videos | No | Yes | Yes |
Operating time (t=25 °C) | To 3,5 h | To 3,5 h | To 3,5 h |
Dimensions (L, W, H), weight | 150x60x60 mm, 370 g | 195x60x60 mm, 420 g | 215x61x61 mm, 570 g |
Target detction (1,7 m) | 986 m | 1 818 m | 2 597 m |
Start-up time | — | — | — |
Warranty | 36 months | 36 months | 36 months |
App support | No | Yes | Yes |
Package includes FOX 35 ELITE II, protective textile cover, USB-C cable, Weaver rail mount, 2pcs battery CR123 3V, user manual and sticker Night Pearl.
